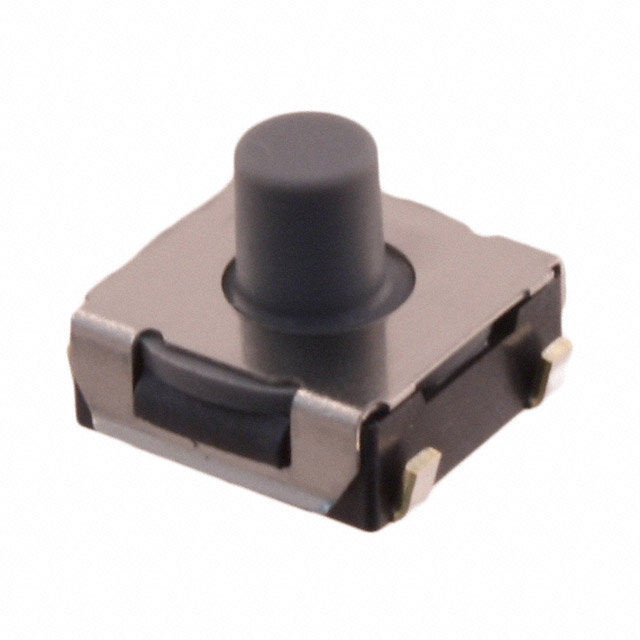

B3SL-1022P
SWITCH TACTILE SPST-NO 0.05A 12V
NOVA Part#:
572-1207205-B3SL-1022P
Manufacturer:
Manufacturer Part No:
B3SL-1022P
Standard Package:
1,400
Technical Datasheet:
Available download format
Please fill in your information in the form , we will contact you and give you the cad model as soon as possible.
Tactile Switch SPST-NO Top Actuated Surface Mount
| Category | Tactile Switches | |
| Manufacturer | Omron Electronics Inc-EMC Div | |
| RoHS | 1 | |
| Packaging | Tape & Reel (TR) | |
| Illumination | Non-Illuminated | |
| Illumination Voltage (Nominal) | - | |
| Operating Temperature | -25°C ~ 90°C | |
| Mounting Type | Surface Mount | |
| Base Product Number | B3S | |
| Actuator Material | Rubber | |
| Operating Force | 200gf | |
| Series | B3SL | |
| Switch Function | Off-Mom | |
| Actuator Height off PCB, Vertical | 5.10mm | |
| Actuator Length, Right Angle | - | |
| Actuator Orientation | Top Actuated | |
| Outline | 6.00mm x 6.00mm | |
| Illumination Type, Color | - | |
| Circuit | SPST-NO | |
| Switch Travel | 0.50mm | |
| Mechanical Life | 100,000 Cycles | |
| Contact Rating @ Voltage | 0.05A @ 12VDC | |
| Features | Sealed - Fully | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Actuator Type | Standard | |
| Termination Style | SMD (SMT) Tab | |
| Other Names | B3SL1022P SW1065CT SW1065TR SW1065DKR |
In stock Please contact us
Not the price you want? Fill the forms and we'll contact you ASAP.
