MF-SM050-2

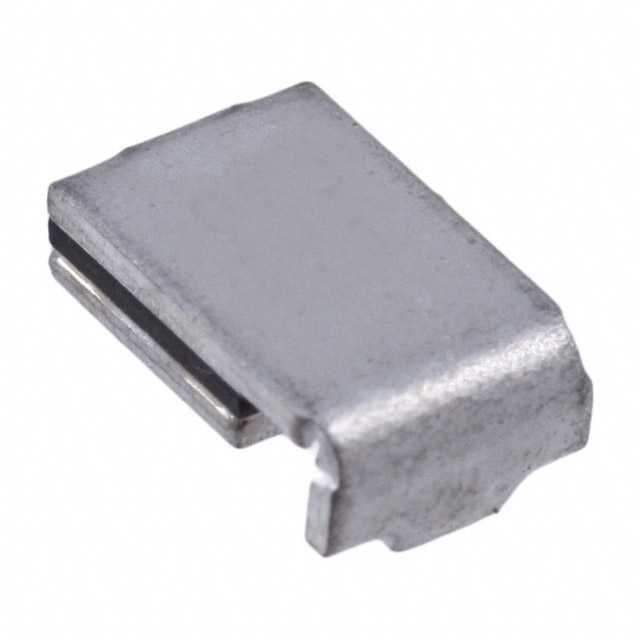

PTC RESET FUSE 60V 500MA 2SMD
NOVA Part#:
126-2472347-MF-SM050-2
Manufacturer:
Manufacturer Part No:
MF-SM050-2
Standard Package:
2,000
Technical Datasheet:
Available download format
Please fill in your information in the form , we will contact you and give you the cad model as soon as possible.
Polymeric PTC Resettable Fuse 60V 500 mA Ih Surface Mount 2-SMD
| Category | PTC Resettable Fuses | |
| Manufacturer | Bourns Inc. | |
| RoHS | 1 | |
| Packaging | Tape & Reel (TR) | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Base Product Number | MF-SM | |
| Series | Multifuse®, MF-SM | |
| Type | Polymeric | |
| Current - Max | 40 A | |
| Current - Hold (Ih) (Max) | 500 mA | |
| Current - Trip (It) | 1 A | |
| Time to Trip | 4 s | |
| Resistance - Initial (Ri) (Min) | 350 mOhms | |
| Resistance - Post Trip (R1) (Max) | 1.4 Ohms | |
| Package / Case | 2-SMD | |
| Size / Dimension | 0.287" L x 0.214" W (7.31mm x 5.44mm) | |
| Height - Seated (Max) | - | |
| Thickness (Max) | 0.125" (3.18mm) | |
| Lead Spacing | - | |
| Voltage - Max | 60V | |
| Ratings | AEC-Q200 | |
| Approval Agency | cURus, TUV | |
| Other Names | MF-SM050TR MF-SM050-02 MF-SM050TR-NDR MF-SM050CT-NDR MF-SM050CT MFSM0502 MF-SM050DKR-NDR MF-SM050DKR |
