Series
JB
Circuit
SPST-NO
Outline
10.00mm x 10.00mm
Features
Process Sealed
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling

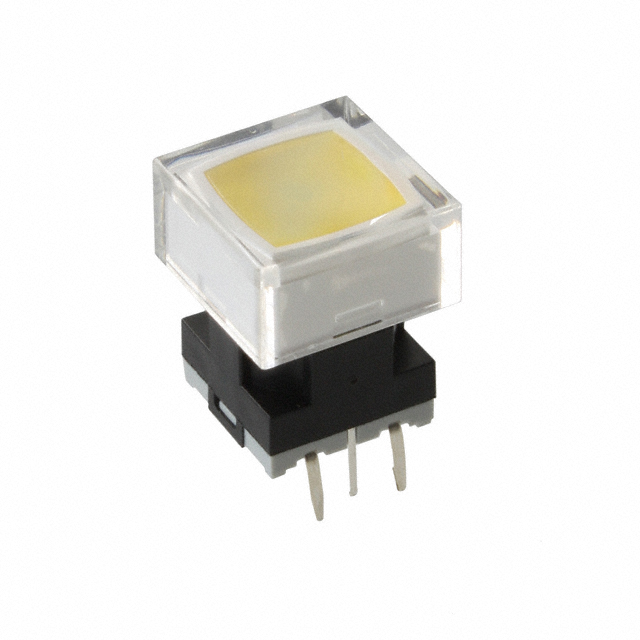

| Parameter | Value |
|---|---|
| Category | Tactile Switches |
| Manufacturer | NKK Switches |
| Series | JB |
| Circuit | SPST-NO |
| Outline | 10.00mm x 10.00mm |
| Features | Process Sealed |
| Packaging | Bulk |
| Part Status | Active |
| Illumination | Illuminated |
| Actuator Type | Square Button |
| Mounting Type | Through Hole |
| Switch Travel | 0.30mm |
| Mechanical Life | 1,000,000 Cycles |
| Operating Force | 265gf |
| Switch Function | Off-Mom |
| Actuator Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Termination Style | PC Pin |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Base Product Number | JB15HBPE |
| Actuator Orientation | Top Actuated |
| Operating Temperature | -25°C ~ 70°C |
| Contact Rating @ Voltage | 0.125A @ 24VDC |
| Illumination Type, Color | LED, Yellow |
| Actuator Length, Right Angle | - |
| Illumination Voltage (Nominal) | 2 VDC |
| Actuator Height off PCB, Vertical | 14.70mm |
