A89500GEJTR-T
80V AUTOMOTIVE HALF BRIDGE GATE
NOVA Part#:
16-79523-A89500GEJTR-T
Manufacturer:
Manufacturer Part No:
A89500GEJTR-T
Standard Package:
1,500
Technical Datasheet:
Available download format
Please fill in your information in the form , we will contact you and give you the cad model as soon as possible.

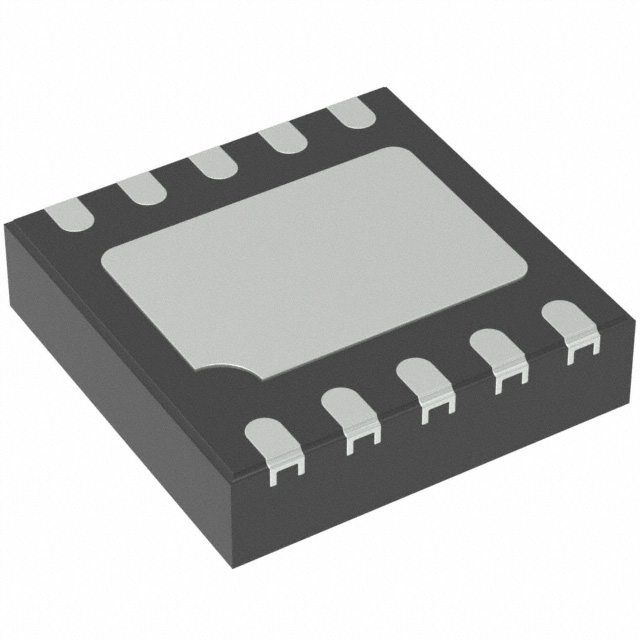

Half-Bridge Gate Driver IC Non-Inverting 10-DFN (3x3)
| Category | PMIC - Gate Drivers | |
| Manufacturer | Allegro MicroSystems | |
| RoHS | 1 | |
| Packaging | Tape & Reel (TR) | |
| Operating Temperature | -40°C ~ 105°C (TA) | |
| Mounting Type | Surface Mount, Wettable Flank | |
| Supplier Device Package | 10-DFN (3x3) | |
| Base Product Number | A89500 | |
| Series | - | |
| Driven Configuration | Half-Bridge | |
| Number of Drivers | 1 | |
| Gate Type | N-Channel MOSFET | |
| Voltage - Supply | 8V ~ 15V | |
| Logic Voltage - VIL, VIH | 1V, 2V | |
| Current - Peak Output (Source, Sink) | 2.7A, 2.7A | |
| Package / Case | 10-WFDFN Exposed Pad | |
| High Side Voltage - Max (Bootstrap) | 100 V | |
| Input Type | Non-Inverting | |
| Rise / Fall Time (Typ) | 105ns, 46ns | |
| Channel Type | Single | |
| Other Names | 620-A89500GEJTR-TTR 620-A89500GEJTR-TDKR 620-A89500GEJTR-TCT |
