STM32F407VET6 MCU Overview: Features, Applications, and Where to Buy
You find the STM32F407VET6 MCU in many new electronics projects. This microcontroller has an ARM Cortex-M4 core. It can run at speeds up to 168 MHz. I
You find the STM32F407VET6 MCU in many new electronics projects. This microcontroller has an ARM Cortex-M4 core. It can run at speeds up to 168 MHz. It works fast and handles tasks in real time. It has a floating-point unit and DSP instructions. These features help you process data quickly and well. If you like making devices or work with embedded systems, the STM32F407VET6 gives you tools for strong designs.
Key Takeaways
The STM32F407VET6 MCU has a strong ARM Cortex-M4 core. It can run at speeds up to 168 MHz. This makes it great for real-time uses.
It has up to 1 Mbyte of flash memory. It also has 192 Kbytes of SRAM. This gives lots of space for big projects.
It works with many communication interfaces like USB, CAN, and Ethernet. This lets it connect in different ways in embedded systems.
When you buy one, get it from trusted sellers like ControllersTech or Amazon. This helps you avoid fake products.
Use good habits like adding decoupling capacitors. Set unused GPIO pins as analog inputs. This helps it work better and saves power.
STM32F407VET6 MCU Features
Core Specifications
The STM32F407VET6 MCU has many strong features. It uses an ARM Cortex-M4 core with a floating-point unit. The chip can run as fast as 168 MHz. There is a lot of memory for your projects. You get up to 1 Mbyte of flash memory. It also has 192 Kbytes of SRAM and 4 Kbytes of backup SRAM. The package type is ECOPACK2 compliant. This means it follows strict rules to protect the environment.
Here is a table that lists the main specifications:
Specification | Details |
|---|---|
Clock Speed | Up to 168 MHz |
Flash Memory | Up to 1 Mbyte |
SRAM | Up to 192 Kbytes + 4 Kbytes backup SRAM |
Package Type | ECOPACK2 compliant |
Core | Arm Cortex-M4 with FPU |
ADC | 3 × 12-bit ADCs, up to 24 channels |
DAC | 2 × 12-bit DACs |
I/O Ports | Up to 140 I/O ports with interrupt capability |
Communication Interfaces | Up to 15 communication interfaces |
You can use this MCU in many different designs. It supports lots of input and output choices. The device also meets RoHS standards. This means it is safe to use around the world.
Performance Highlights
The STM32F407VET6 MCU works well for real-time jobs. It can process data fast because it has a floating-point unit. This unit lets you use all Arm single-precision instructions and data types. You can do hard math problems faster and easier.
You can do digital signal processing jobs easily.
You can use this MCU for control systems and robots.
You can save energy because it has low-power modes.
Here is a table that compares the STM32F407VET6 MCU to other microcontrollers:
MCU Model | Clock Speed (MHz) | FOC Loop Execution Time (us) | Notes |
|---|---|---|---|
ATSAME54P20A (Cortex-M4) | 120 | 12.4 | Fast execution due to hardware FPU and better memory access. |
STM32F446RE (Cortex-M4) | 120 | 15.5 | Slightly slower due to memory wait states. |
TI C2000 Delfino Series | Up to 300 | Not specified (very fast) | Real-time control loop runs efficiently with advanced FPU. |
dsPIC (fixed point) | Equivalent | Slower | Software floating-point routines are much slower. |
You can see the STM32F407VET6 MCU is fast. It works well compared to other Cortex-M4 chips. You get quick results and good performance.
Unique Advantages
The STM32F407VET6 MCU gives you special benefits. It is different from other ARM Cortex-M4 microcontrollers. This is because it has many features and strong ways to connect.
Feature | Description |
|---|---|
ARM Cortex-M4 | |
Program Memory Size | 512KB |
RAM Size | 192K x 8 |
Connectivity | CANbus, Ethernet, I2C, SPI, USB OTG |
ADC Channels | 16 |
PWM Channels | 2 |
Frequency | 168MHz |
Supply Voltage Range | 1.8V to 3.6V |
You can connect this MCU to many devices. It works with CANbus, Ethernet, I2C, SPI, and USB OTG. You can use up to 16 ADC channels for sensors. You can also use PWM channels for motors. The wide voltage range lets you use it in many places.
Tip: The STM32F407VET6 MCU meets RoHS standards. You can use it in products for the world that need safe and green parts.
This microcontroller gives you speed, memory, and ways to connect. You can make advanced projects and feel sure about your work.
STM32F407VET6 MCU Applications
Embedded Systems
The STM32F407VET6 MCU works in many embedded systems. This microcontroller helps you make smart devices. These devices need fast and steady control. Here are some ways people use it:
Industrial automation: It can control machines in factories.
IoT devices: It connects sensors and gadgets to the internet.
Audio processing: It handles music and voice signals.
Consumer electronics: It powers home gadgets and entertainment.
You get many ways to connect, like USB, CAN, and Ethernet. Low power modes help save battery life. The floating-point unit and DSP instructions make data processing fast. You can use the advanced ADCs to read sensor signals. This makes the STM32F407VET6 MCU a good pick for smart products.
Robotics and Consumer Electronics
This microcontroller works in robots and smart gadgets. It gives you speed and memory for hard jobs. The table below shows features that help with these uses:
Feature | Description |
|---|---|
Core | ARM 32-bit Cortex-M4 CPU with FPU, up to 168 MHz |
Flash Memory | |
SRAM | Up to 192+4 Kbytes, including 64-Kbyte CCM data RAM |
ADC | 3×12-bit, 2.4 MSPS A/D converters: up to 24 channels |
DAC | 2×12-bit D/A converters |
Timers | Up to 17 timers: twelve 16-bit and two 32-bit timers |
I/O Ports | Up to 140 I/O ports with interrupt capability |
Communication Interfaces | Up to 15 interfaces including USB, CAN, and Ethernet |
Power Supply | 1.8 V to 3.6 V application supply and I/Os |
Debugging | Serial wire debug (SWD) & JTAG interfaces |
You can control motors and read sensors. You can show info on screens. The microcontroller supports LCD screens in 8080 or 6800 modes. You can use digital signal processing for voice or sound effects. Many home robots and smart appliances use these features to work better.
Development Boards and Peripherals
Many development boards use the STM32F407VET6 MCU. These boards help you test ideas and build new things. They support many helpful parts. The table below lists some features you get:
Feature | Description |
|---|---|
Microcontroller | STM32F407VET6 in LQFP100 package |
CPU | ARM 32-bit Cortex-M4 with FPU |
Max CPU Frequency | 168 MHz |
Power Supply | USB VBUS or external source (3.3V, 5V) |
Flash Memory | 512 kB |
SRAM | 192+4 KB (including 64-Kbyte core coupled memory) |
GPIO with Interrupt Capability | Yes |
ADC Channels | 3x12-bit ADC with 24 channels |
D/A Converters | 2x12-bit D/A converters |
Timers | 2 Advanced-control, 12 General Purpose, 2 Watchdog |
Communication Interfaces | USART (3), UART (2), I2C (3), I2S (2), SPI (3) |
Ethernet MAC | 10/100 Ethernet MAC with dedicated DMA |
USB Support | USB 2.0 OTG FS and HS/FS |
Dimensions | 85.1mm x 72.45mm |
You can add TF card sockets for more storage. You can use LCD screens for displays. The memory controller lets you use extra memory and LCDs. The floating-point unit and DSP instructions help you process data fast. You can use these boards to learn and build real things.
Tip: The STM32F407VET6 MCU is good for digital signal processing, LCD screens, and other cool features. It is great for learning and making real devices.
Buy STM32F407VET6 MCU
Trusted Suppliers
You should buy the STM32F407VET6 MCU from trusted places. Good suppliers help you avoid fake chips and get help if you need it. Here are some popular places to buy this microcontroller:
Amazon
ic-online.com (gives ERAI membership for better safety and lower prices)
These sellers are well-known in electronics. ic-online.com is special because it offers ERAI membership. This gives you extra safety from fake parts.
Authenticity Tips
You must check if your STM32F407VET6 MCU is real before buying. Use these ways to make sure you get a true product:
Method | Description |
|---|---|
Inspection Process | Sellers look at all items before sending. They check if the parts match the datasheet. |
Packaging | Chips come in anti-static bags with ESD protection. This keeps them safe while shipping. |
Supplier Qualification | Sellers must pass a check. Only real makers or agents can sell these chips. |
Warranty | You get a 365-day warranty. If something is wrong, you can get a refund or a new chip. |
Fake chips are a problem in electronics. You can stay safe by using these tips:
Mitigation Strategies | |
|---|---|
Proliferation of counterfeit electronic components | Buy from approved sellers. Ask for batch records and Certificates of Conformity. Check the original packaging. |
Tip: Always check STMicroelectronics' list of approved sellers. Looking at the chip and testing it helps you find fakes.
Price Guide

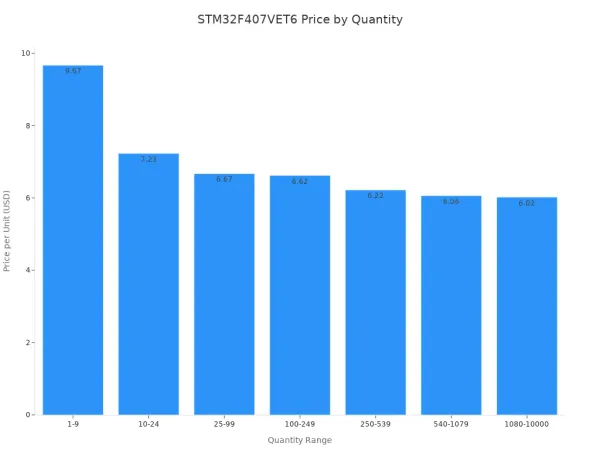

The price of the STM32F407VET6 MCU depends on how many you buy. You pay less for each chip if you buy more. Here is a table that shows common prices:
Quantity | Savings | |
|---|---|---|
1-9 | $9.67 | 6% |
10-24 | $7.23 | 30% |
25-99 | $6.67 | 35% |
100-249 | $6.62 | 36% |
250-539 | $6.22 | 39% |
540-1079 | $6.06 | 41% |
1080-10000 | $6.02 | 41% |
When you buy, look at the packaging and RoHS label. Most STM32F407VET6 MCU chips come in trays and follow Ecopack2 rules. RoHS means the chip is safe for the earth.
| Packing Type | Tray | | RoHS compliant | Ecopack2 |
Note: Always check for the 100-pin LQFP package and RoHS mark when you buy. These things help you get the right chip for your project.
You get fast speed, lots of memory, and good ways to connect with the STM32F407VET6 MCU. You can use this chip in many things, like smart gadgets or robots. If you know what it can do, you can choose the right parts and make fewer mistakes. When you want to buy one, pick trusted sellers such as ControllersTech, Amazon, or ic-online.com. These places give you good quality and fair prices. For your next project, try to follow these helpful tips:
Best Practices for STM32F407VET6 Integration | Description |
|---|---|
Decoupling Capacitors | Put 0.1µF capacitors near VDD pins to block noise. |
Ground Plane | Make a strong ground plane on your PCB to lower EMI. |
Unused Pins | Set unused GPIO pins as analog inputs to save power. |
Boot Configuration | Pick BOOT0 and BOOT1 pin settings for the boot mode you want. |
Tip: Use STM32 HAL and STM32Cube software to help you code. Download drivers like ST-LINK/V2 to make programming easier.
FAQ
What makes the STM32F407VET6 MCU special?
This MCU has a fast ARM Cortex-M4 core. It also has a floating-point unit. There are many I/O choices for connecting things. You can use it for real-time jobs. It works well in lots of projects. People use it in robotics, audio, and smart devices.
Where can you buy the STM32F407VET6 MCU?
You can buy this MCU from trusted places. Some good options are ControllersTech, Amazon, and ic-online.com. ic-online.com gives ERAI membership for better safety and prices. Always look for original packaging and RoHS marks.
How do you avoid counterfeit STM32F407VET6 chips?
Buy only from approved sellers. Check for anti-static packaging and the RoHS label. Ask for certificates to prove the chip is real. If you buy from ic-online.com, ERAI membership gives extra protection.
What development boards support the STM32F407VET6 MCU?
You can use boards like STM32F4 Discovery. Other STM32F4 series boards work too. These boards help you test features and connect parts. You can start projects fast with them.
Can you use the STM32F407VET6 MCU for learning?
Yes! You can use this MCU to learn about coding and electronics. Many online guides and resources help beginners and students.
