LMV321IDBVR

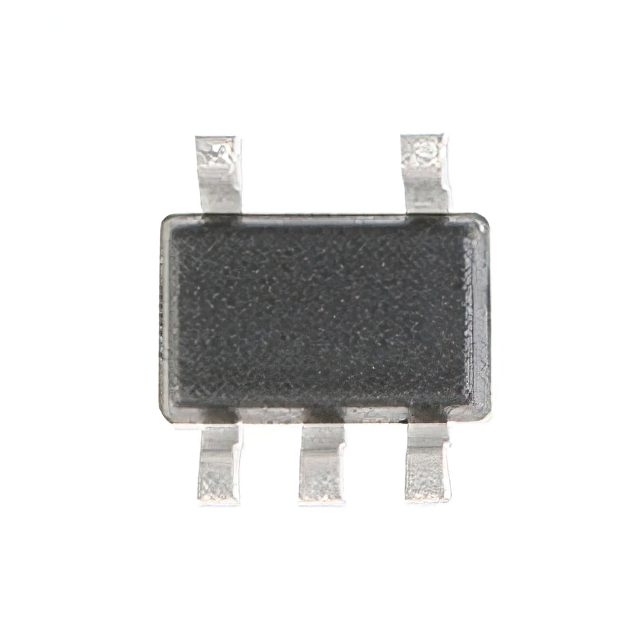

IC OPAMP GP 1 CIRCUIT SOT23-5
NOVA Part#:
23-145121-LMV321IDBVR
Manufacturer:
Manufacturer Part No:
LMV321IDBVR
Standard Package:
3,000
Technical Datasheet:
Available download format
Please fill in your information in the form , we will contact you and give you the cad model as soon as possible.
General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5
| Category | Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps | |
| Manufacturer | Texas Instruments | |
| RoHS | 1 | |
| Packaging | Tape & Reel (TR) | |
| Amplifier Type | General Purpose | |
| Operating Temperature | -40°C ~ 125°C | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | SOT-23-5 | |
| Base Product Number | LMV321 | |
| Slew Rate | 1V/µs | |
| Series | - | |
| Current - Input Bias | 15 nA | |
| Voltage - Input Offset | 1.7 mV | |
| Current - Supply | 130µA | |
| Current - Output / Channel | 160 mA | |
| Voltage - Span (Min) | 2.7 V | |
| Voltage - Span (Max) | 5.5 V | |
| Package / Case | SC-74A, SOT-753 | |
| Gain Bandwidth Product | 1 MHz | |
| Output Type | Rail-to-Rail | |
| Number of Circuits | 1 | |
| Other Names | -LMV321IDBVRE4 296-9567-6 -296-9567-1 296-9567-2 -LMV321IDBVRE4-NDR -296-9567-1-ND 296-9567-1 2156-LMV321IDBVR TEXTISLMV321IDBVR -LMV321IDBVRG4 -LMV321IDBVRG4-NDR -LMV321IDBVR-NDR |
In stock Need more?
$0.06340
Not the price you want? Fill the forms and we'll contact you ASAP.
