CXA1520-0000-000N0YM235F

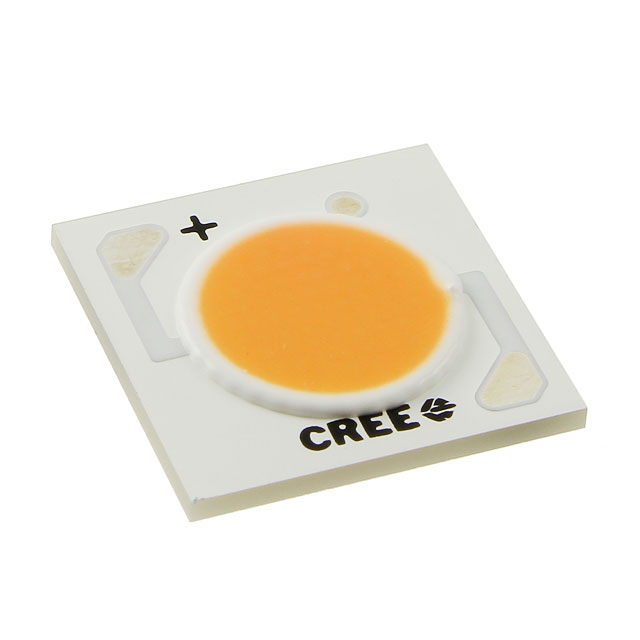

LED ARRAY XLAMP CXA1520 WHITE
NOVA Part#:
396-1687498-CXA1520-0000-000N0YM235F
Manufacturer:
Manufacturer Part No:
CXA1520-0000-000N0YM235F
Standard Package:
100
Technical Datasheet:
Available download format
Please fill in your information in the form , we will contact you and give you the cad model as soon as possible.
LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
| Category | LED Lighting - COBs, Engines, Modules, Strips | |
| Manufacturer | CreeLED, Inc. | |
| RoHS | 1 | |
| Luminous Flux @ Current/Temperature | 1433lm (1380lm ~ 1485lm) | |
| Temperature - Test | 85°C | |
| Lens Type | Flat | |
| Series | XLamp® CXA1520 | |
| Type | Chip On Board (COB) | |
| Size / Dimension | 15.85mm L x 15.85mm W | |
| Light Emitting Surface (LES) | 8.90mm Dia | |
| CCT (K) | 3500K 4-Step MacAdam Ellipse | |
| Lumens/Watt @ Current - Test | 82 lm/W | |
| CRI (Color Rendering Index) | 93 | |
| Voltage - Forward (Vf) (Typ) | 35V | |
| Current - Max | 900mA | |
| Configuration | Square | |
| Current - Test | 500mA | |
| Color | White, Warm | |
| Features | - | |
| Wavelength | - | |
| Viewing Angle | 115° | |
| Height | 1.70mm |
