LTST-C193KSKT-5A

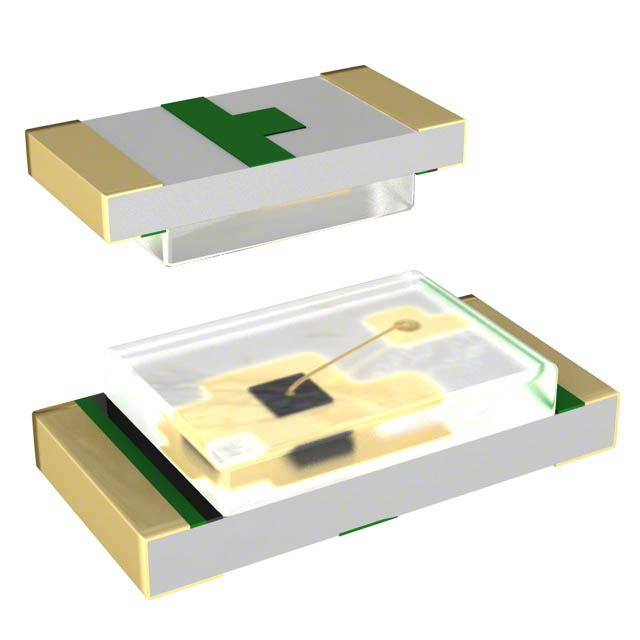

LED YELLOW CLEAR CHIP SMD
NOVA Part#:
393-1703112-LTST-C193KSKT-5A
Manufacturer:
Manufacturer Part No:
LTST-C193KSKT-5A
Standard Package:
5,000
Technical Datasheet:
Available download format
Please fill in your information in the form , we will contact you and give you the cad model as soon as possible.
Yellow 591nm LED Indication - Discrete 2V 0603 (1608 Metric)
| Category | LED Indication - Discrete | |
| Manufacturer | Lite-On Inc. | |
| RoHS | 1 | |
| Packaging | Tape & Reel (TR) | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | Chip LED | |
| Base Product Number | LTST-C193 | |
| Wavelength - Peak | 591nm | |
| Millicandela Rating | 26.05mcd | |
| Lens Style | Rectangle with Flat Top | |
| Lens Size | 1.15mm x 0.80mm | |
| Series | - | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Wavelength - Dominant | 591nm | |
| Package / Case | 0603 (1608 Metric) | |
| Size / Dimension | 1.60mm L x 0.80mm W | |
| Voltage - Forward (Vf) (Typ) | 2V | |
| Configuration | Standard | |
| Current - Test | 5mA | |
| Color | Yellow | |
| Features | - | |
| Viewing Angle | 130° | |
| Height (Max) | 0.45mm | |
| Other Names | LTSTC193KSKT5A 160-1831-1 Q7629435A 160-1831-2 160-1831-6 |
In stock Need more?
$0.01670
