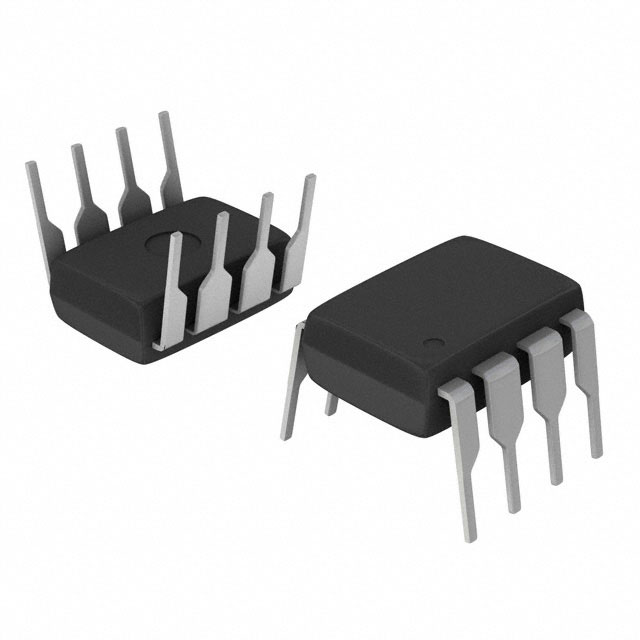

LM555CN
IC OSC SINGLE TIMER 8-DIP
NOVA Part#:
334-3121336-LM555CN
Manufacturer:
Manufacturer Part No:
LM555CN
Standard Package:
3,000
Technical Datasheet:
Available download format
Please fill in your information in the form , we will contact you and give you the cad model as soon as possible.
555 Type, Timer/Oscillator (Single) IC - 8-DIP
| Category | Clock/Timing - Programmable Timers and Oscillators | |
| Package case | 8-DIP (0.300", 7.62mm) | |
| Manufacturer | onsemi | |
| RoHS | 1 | |
| Operating Temperature | 0°C ~ 70°C | |
| Mounting Type | Through Hole | |
| Supplier Device Package | 8-DIP | |
| Base Product Number | LM555 | |
| Type | 555 Type, Timer/Oscillator (Single) | |
| Count | - | |
| Frequency | - | |
| Voltage - Supply | 4.5V ~ 16V | |
| Current - Supply | 7.5 mA | |
| Other Names | LM555CNFS-NDR LM555CNFS |
In stock Please contact us
Not the price you want? Fill the forms and we'll contact you ASAP.
