ADCLK854BCPZ-REEL7

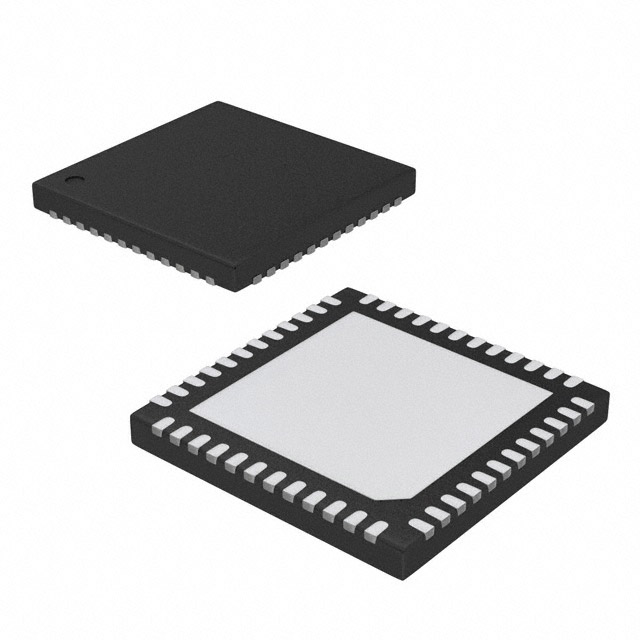

IC CLK BUF 2:12 1.2GHZ 48LFCSP
NOVA Part#:
31-225374-ADCLK854BCPZ-REEL7
Manufacturer:
Manufacturer Part No:
ADCLK854BCPZ-REEL7
Standard Package:
750
Technical Datasheet:
Available download format
Please fill in your information in the form , we will contact you and give you the cad model as soon as possible.
Clock Fanout Buffer (Distribution), Multiplexer IC 2:12 1.2 GHz 48-VFQFN Exposed Pad, CSP
| Category | Clock/Timing - Clock Buffers, Drivers | |
| Manufacturer | Analog Devices Inc. | |
| RoHS | 1 | |
| Packaging | Tape & Reel (TR) | |
| Type | Fanout Buffer (Distribution), Multiplexer | |
| Voltage - Supply | 1.71V ~ 1.89V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Supplier Device Package | 48-LFCSP-VQ (7x6.75) | |
| Base Product Number | ADCLK854 | |
| Input | CML, CMOS, HSTL, LVDS, LVPECL | |
| Output | CMOS, LVDS | |
| Series | - | |
| Package / Case | 48-VFQFN Exposed Pad, CSP | |
| Ratio - Input:Output | 2:12 | |
| Differential - Input:Output | Yes/Yes | |
| Frequency - Max | 1.2 GHz | |
| Number of Circuits | 1 | |
| Other Names | ADCLK854BCPZ-REEL7CT ADCLK854BCPZ-REEL7TR ADCLK854BCPZ-REEL7DKR ADCLK854BCPZREEL7 ADCLK854BCPZ-REEL7-ND |
In stock Please contact us
